Digimotor VAS 5054A Full Chip OKI AMB2300 UDS ODIS v4.0.0 OBD2 Bluetooth Adapter VAS5054A VAS5054 5054 Auto Diagnostic Scanner

Digimotor VAS 5054A Full Chip OKI AMB2300 UDS ODIS v4.0.0 OBD2 Bluetooth Adapter VAS5054A VAS5054 5054 Auto Diagnostic Scanner
  • Продавецrennstall.info
  • Список ценUS $68.88piece
  • Продажная ценаUS $68.88piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (369)

Oписание продукта




Store Comment&Buyer Tips:
1. For Customs Value we always put low value on parcel,if buyer have special request please leave message on order below ,we will decalre the value you wished.
2. Item CD will maybe easily broken in shipping way,so if CD can\'t readable,please DO CONTACT us to send you download link ,DO NOT DISPUTE and Negative Feedback for this .
3. If you have any problem,please feel free to contact us first,we will try best to solve for you.

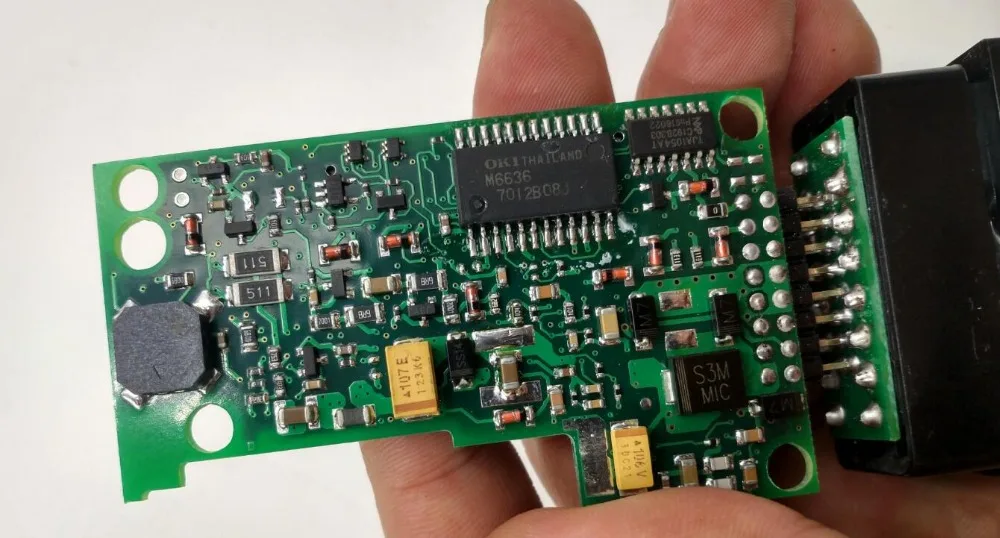

Original Full OKI Chip:




Normal Oki Chip:


software display

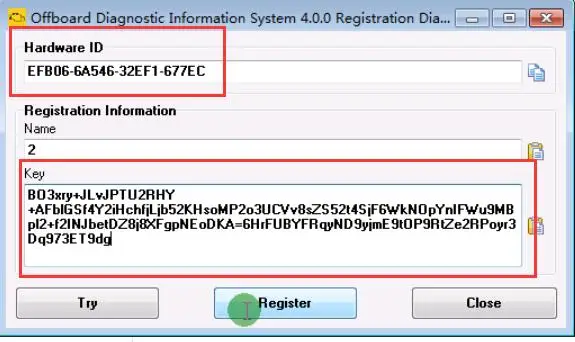

1.the ODIS V4.2.3 Need to be activity,please contact with us after receive package,we will send the License and activity key to you,
2.the software of CD is v4.2.3 in general,if you need ODIS V3.0.3,please tell us,thanks(the ODIS V3.0.3 no need activity)




item Descriptions


VAS 5054A best quality version, with OKI chip, support UDS protocols. This version vas 5054a support for VW ,for AUDI ,for Bentley and for Lamborghini, support multi-language. Newest software version is V-A-G ODIS 4.2.3
, with bluetooth. If you want high quality VAS 5054A, please choose this one.

VAS 5054A hardware support online coding, but our software not support. Need get software from VW dealer for online coding function.
VAS5054A ODIS 4.2.3/4.1.3/3.0.3 New Highlights:
With OKI Chip
Support UDS Protocol
You can choose any language you need freely
Supported Car models: for VW for AUDI for SKODA for SEAT for Bentley for Lamborgh
VAS 5054A ODIS 4.2.3 Computer Windows System Requirements:
Windows System Language: American English
Windows XP(xp2/xp3),Windows7
System C:// have to be NTFS format
C:// need to have at least 40 GB space for installing VAS5054A
Bluetooth version

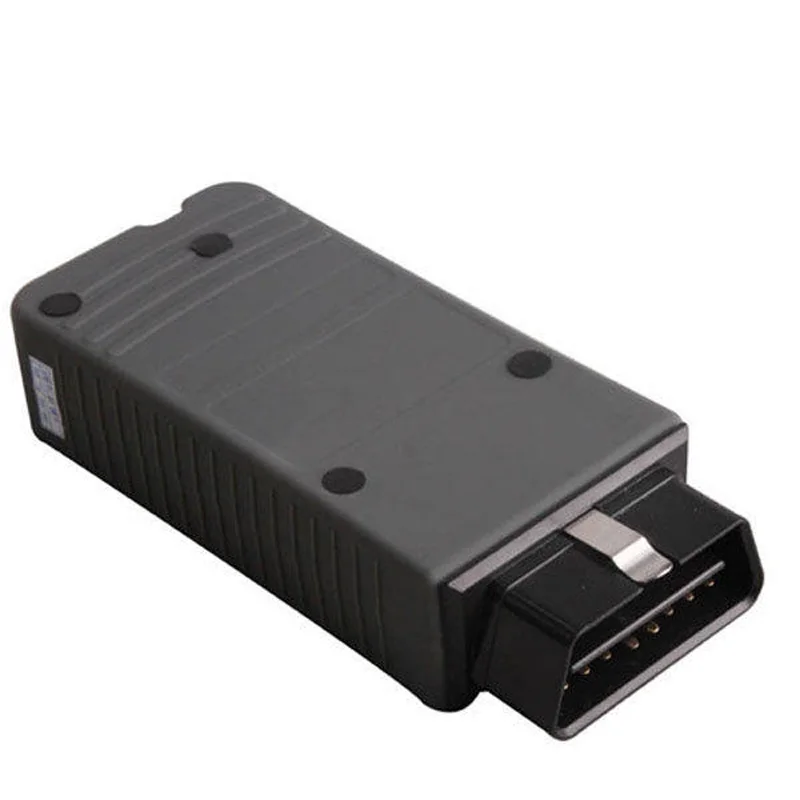

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
1pc x VAS 5054A Main unit
1pc x USB Cable

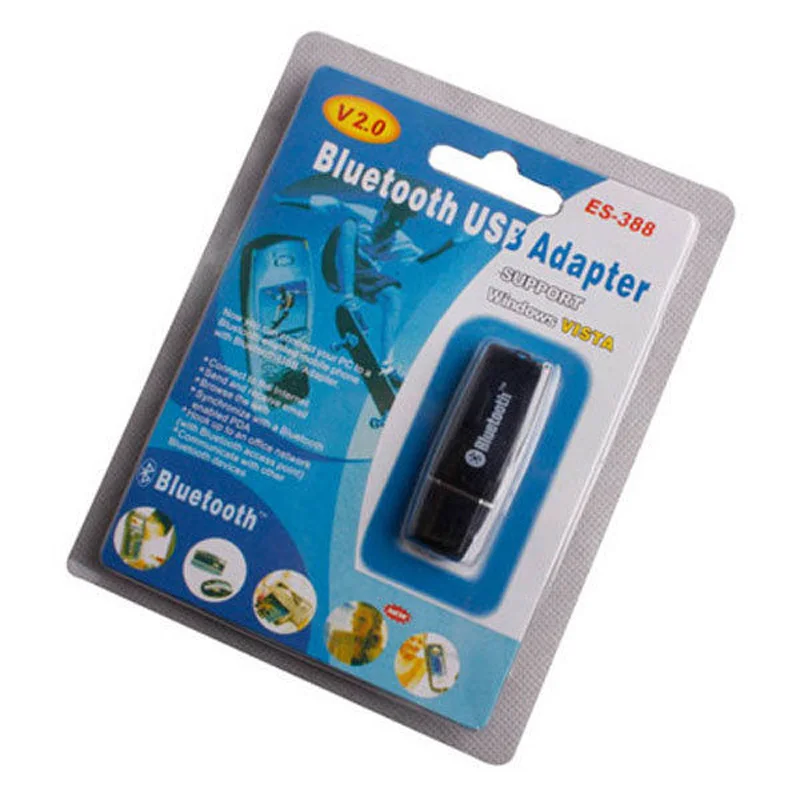

1pc x USB Bluetooth Adapter
2pcs x CD Software
