12000RPM tachometer RPM meter for Motorcycle Motorbike Free Shipping Rev Counter



85mm









Production Description:



85mm Tachometer with Hour Meter, ELECTRICAL

Application: Truck/Tractor/Heavy Duty/Off-Road/Generator/Motorcycle/Marine Boats

· Electronic Tachometer (stepper motor)
· Dual Power Supply System to avoid LCD blind when burnt or faulty
· Support RPM signal input from W-Terminal of Alternator or RPM Sensor
· RPM Ratio (pulses per round) programmable
· Hour Meter Programmable
· Over RPM Buzzer Alarm (Threshold Adjustable)
· Bezel: Black Plastic/Chrome/Stainless Steel
· Face: Black, White
· Installation Diameter: 85mm (3 3/8”)
· RPM Range:0~3000/4000/8000/12000, etc.
· Reverse polarity protection and anti-fogging performance
· Power Supply:8~80V DC
· 316L Stainless Steel Bezel/Plastic Bezel/Chrome Bezel
· Working temperature: - 40 to 85°C
· IP66 Waterproof





Application:



What is the advantages of our GPS speedometer?

advantages

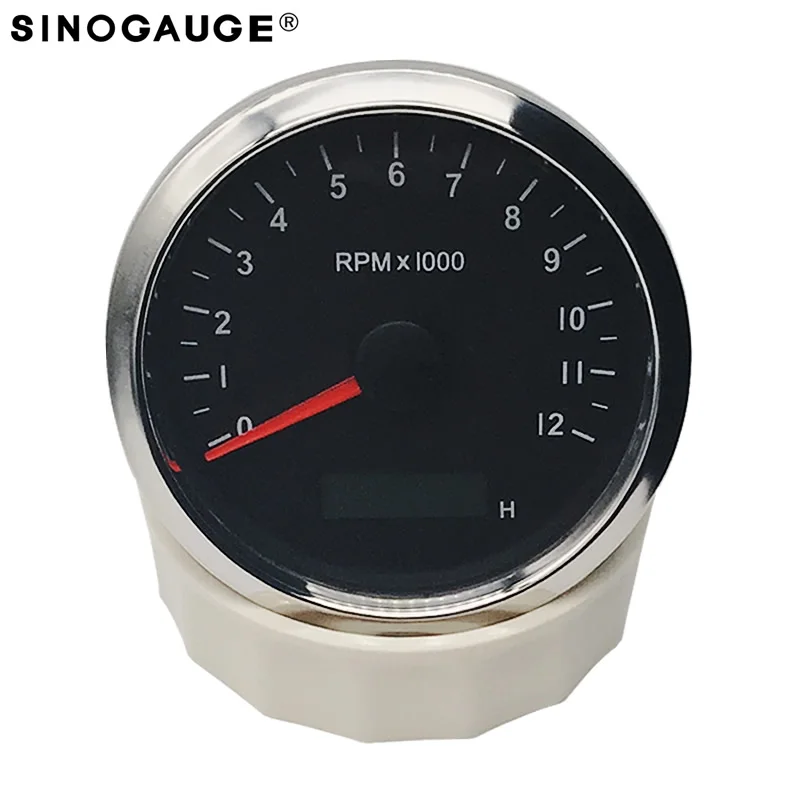

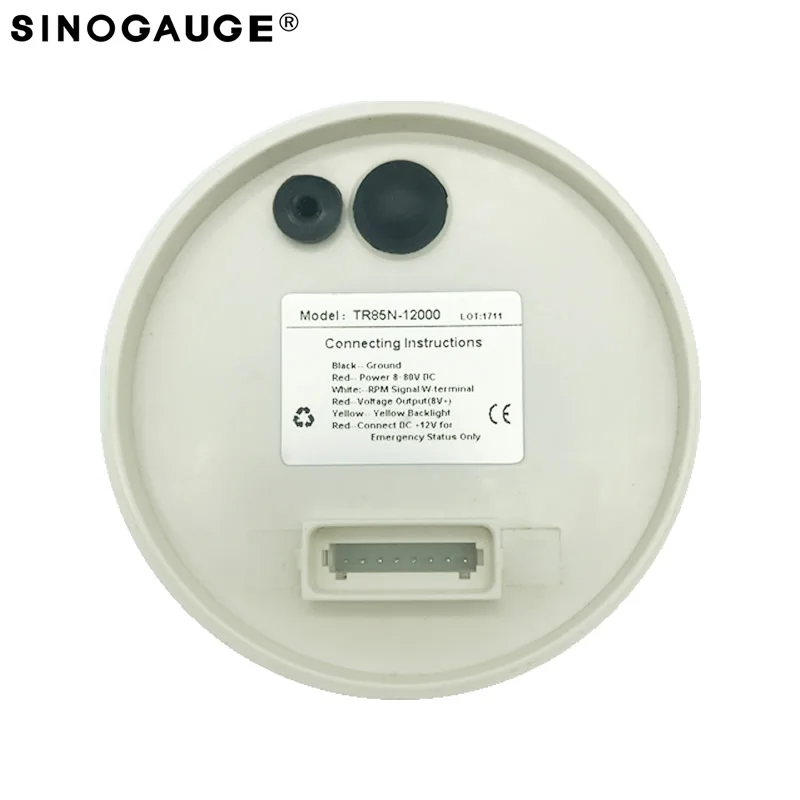

Production images:

TR85-12000STR85-12000BSTR85-12000BSTR85-12000BS

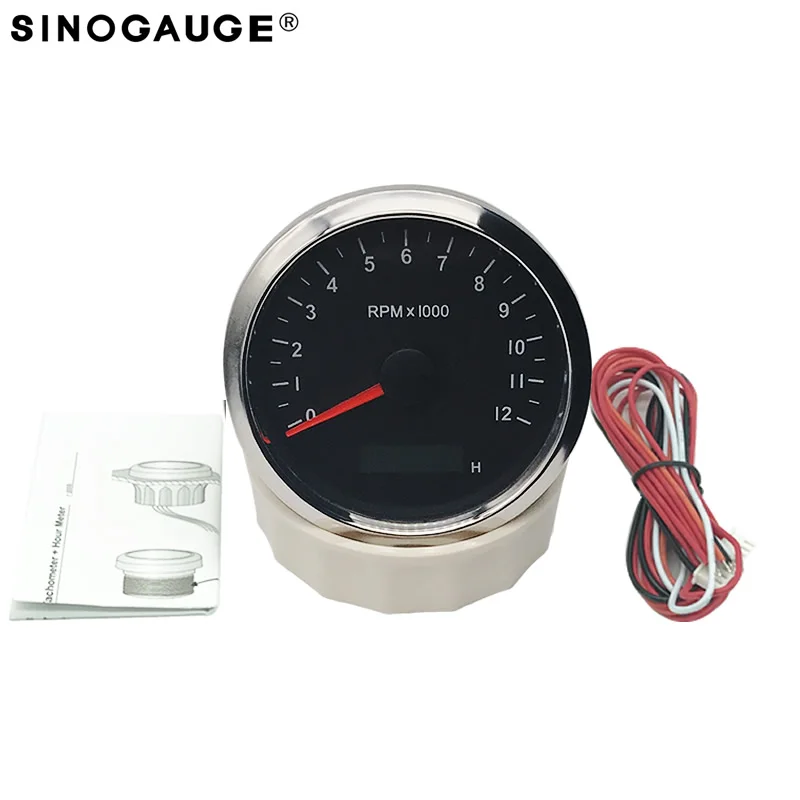

Packaging and Accessories:

TR85-12000S



Installation Guide:





Installation 1



install-2



1. Cut an 85mm (3 3/8") hole in the panel (II) allow a clearance of . behind the panel.
2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)

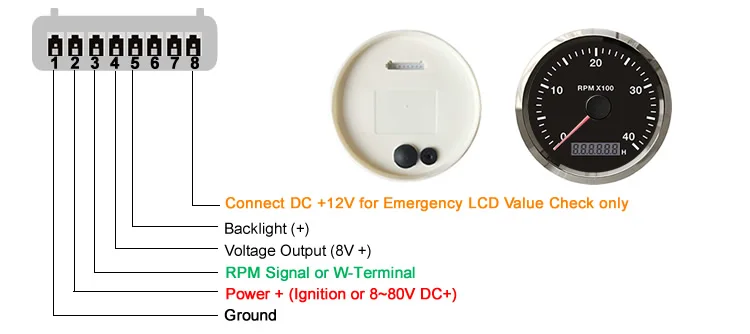

3. Connect cables according to the diagram.
a. Only connect PIN 1,2,3,4,5 in normal installation and use.
Please do NOT connect pin 8.
b. Emergency Connect:
If Tachometer is Burnt/Faulty, then the LCD will be blind. Please connect PIN1 & PIN8 to
read the latest value of LCD Hour Meter

Function Select: “PULSE”,“HOUR”,“BUZZ”
Press and hold on the button at the back, then turn on the power supply.
The LCD will show PULSE, HOUR, BUZZ, etc.
You can select the function to be set after release button.
1.“PULSE” (change RPM Ratio)
After selecting “PULSE”, the LCD will show for example “P 3” (3 means 3pulses per round) after 3
seconds. Press the button to change the flashing digit in the LCD
TR85N install-2
You can select “PULSE” again to confirm the setting is done.
How to confirm RPM Ratio?
a. If your sensor is installed on the flying wheel panel, the RPM ratio is equal to the number of
gears of the engine.
b. If the speed signal takes from W-Terminal, the RPM ratio is equal to the half of the
number of poles.
Normal RPM Ratio for Reference:
TR85N install-1
2.“HOUR”(change total hour meter)
After selecting “HOUR”, the LCD will show for example “5000” (5000 HOUR) , press the button to
change the flashing digit from 0 to 99999 to set the target odometer value.

3.“BUZZ”(change overspeed buzzer alarm threshold value)
After selecting “BUZZ”, the LCD will show for example “B 3000” (buzzer will be on when speed
over 3000RPM), press the button to change the flashing digit from 0 to 8000 to set target overs
RPM buzzer alarm threshold value.

Please noted: After setting, you should disconnect both Power+ and GND, and then reconnect the
two cable, then it will save the setting. If you just cut Power +, then it’ll not work properly.
