Oписание продукта

description1

 Generation 2 SUN-1000G2-LCD 1000W MPPT

Solar Grid Tie Inverter



Higher MPPT

DC 22V-60V/ 45V-90V

AC 110V 120V 220V 230V 240V  (auto selected )

 Our Grid Tie Power Inverter is the world’s most technologically advanced inverter for use in utility-interactive applications. This manual details the safe installation and operation of the Sunshine Grid Tie Inverter.
This integrated system maximizes energy harvest, increases system reliability, and implifies design, installation and management.
The small type solar grid tie power inverter can obtain the solar energy from  solar panel, and can tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable.
We call the system combining with small solar grid tie inverter and solar panels as ‘SGPV’. The system includes solar panels and small type grid tie inverter and installation kit. Solar panels can be mono silicon, polygon silicon, non-crystal film or any other material that can transform
solar energy to electric energy. The power of grid tie inverter should be matched to the power of solar panels connected. So the power of SGPV is defined by its solar panels, it can be standardization according to the actual using.
The inverter can be connected to any outlets of utility grid at house. The small grid tie  inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid\'s, and the volume is a bit higher than the grid\'s, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.
When the sun shines, the PV panel will produces DC voltage, and the grid tie  inverter will change the DC voltage to AC voltage and puts out power to the home grid. When the total power of electric apparatus that are using in the house is larger than the output power of the inverters, these power from the inverters will be consumed in the house, this will slow down the power meter, otherwise, the difference of the output power of the inverter between the total used power of the apparatus will go out from the house to the out grid.

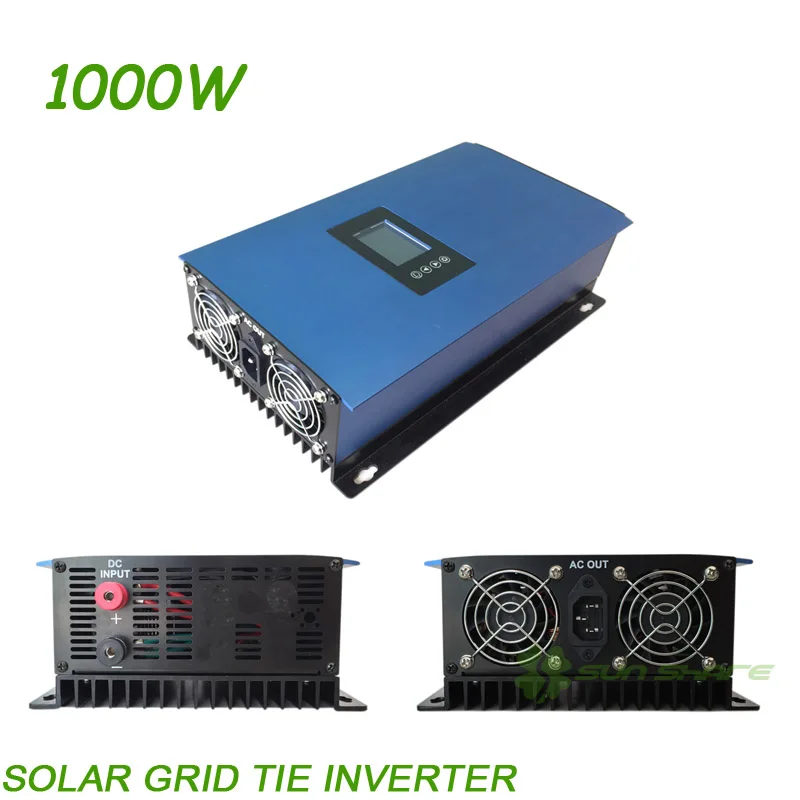

SUN-1000G2-LCD 1000w grid tie inverter



Technical Data

Input Data

Input Voltage Range

  22V-60V/45V-90V

Max input DC voltage

  60V/90V

Peak power tracking voltage

  50-90V

Output Data

Max output power

 1000W

Nominal Voltage

 110vac/230vac auto sensing

Nominal Voltage Range

 95-140v/185-265v

Frequency Range

 47.5-51.5 for 50hz;  59.3-60.5 for 60hz

Power Factor

 >0.95

Output Waveform

 Pure sine wave

Characteristic Data

MPPT Efficiency

99%

Over current protection

yes

Over temperature protection

yes

Reverse polarity protection

yes

Anti-island protection

yes

Stackable

Just for AC output

Operating temperature range

-20 \'C --- +50 \'C

Inverter inside temperature

-20 \'C --- +85 \'C

Current THD

<5%

Voltage THD

<5%

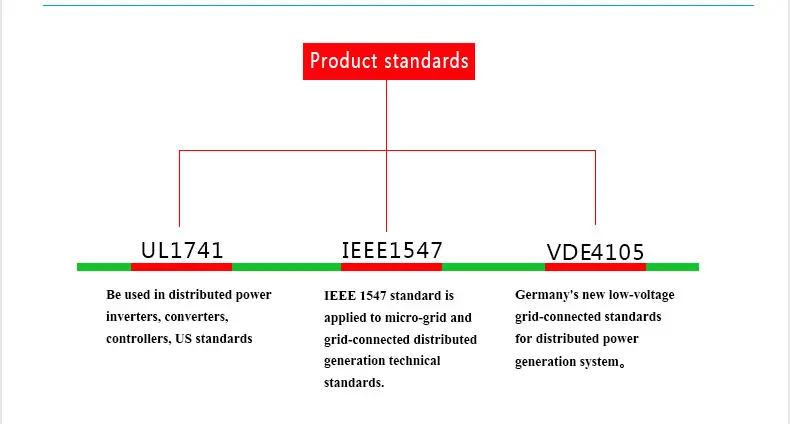

Standard

UL1741,IEEE1547,VDE4105

Cooling

Fans

Peak Inverter Efficiency

>92%

Warranty

2 years



mechanical specification


Operating Temperature Range

-10 0C  ~  45 0C

N.W.

3.6Kg

G.W

5.5Kg

Dimension

322mm*196mm*88mm

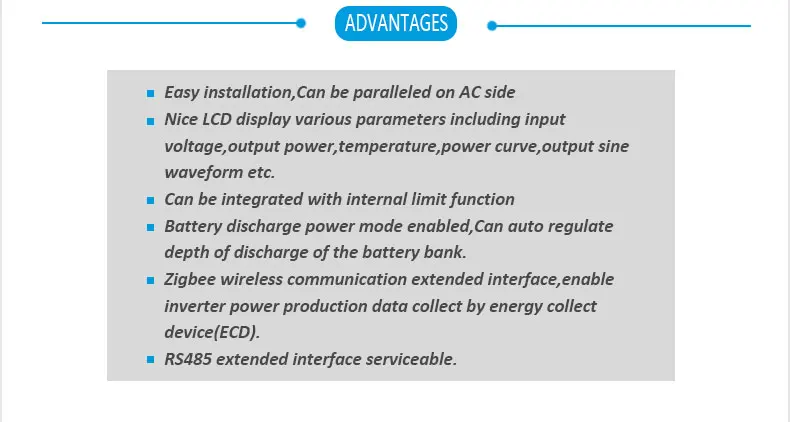

advantage

There are many advantages of SGPV compare with the traditional grid tie power system.

1. Low cost and easy installation - SGPV can make full use of all types of buildings’ surface that face to the sun in the city as well as fast and easy installation of solar modules and grid tie inverter. It just needs very low maintenance costs.
2. Free combination - SGPV can be used as a separate grid tie system and can be setup as a large solar array with many of them. The quantity of SGPV in the array is just according to your desire. If you are planning to install a grid-tie PV system, in a general way, the solar array and inverter need to be carefully matched to ensure that the inverter’s voltage and power limits are not exceeded. When you want to increase more solar panels, and if the total power of the solar panels exceeds the allocation grid inverter, it is necessary to increase the cost of a grid inverter.
3. Combination of SGPV does not interact - The traditional solar grid tie system, they offer units ranging in high power output and these units are modular so you can have multiple units operating in parallel for large solar arrays. Although, the traditional grid inverter has MPPT feature (Maximum Power Point Tracking), but the maximum power point is according to the entire series in terms of solar panels array, if the performance of a piece of solar panels in the system, for some reason, such as leaves, bird droppings, dust, shadow, etc. and degrades, the performance of the entire solar power system will decrease.
SGPV has no such disadvantage. If the performance of a piece of solar panels in the system degrades, this just effects this piece itself, will not affect other SGPV in the system.
4. Improving the efficiency of the entire solar power system – In traditional grid tie system, the solar panels are connected in series, so the MPPT of the inverter is according to the total panels in series, not to every panel, but there is difference between every panel, so not every panel is working at the maximum power, this will reduce the total power of these panel in series.
But SGPV has no such disadvantage. Because every inverter of SGPV has MPPT function, so every panel is working at the maximum power, this will increase the efficiency of the entire system.
5. Low power consumption – Most of the parts in the small grid-tie inverter are digital ICs and
low power MCU, so the power consumption of it is low, though the quantity of grid tie inverters
is increased, but this will not increase the power consumption much of the entire system.

3

4









8 SUN-1000GTIL2-LCD



11 SUN-1000GTIL2-LCD



How to use it

   On-Grid System Using Standard Grid Tie Inverter

1.1. The Grid Tie inverter converts DC power produced by Solar Panels to AC, connects to the grid and feed all of the power available from the panels to the AC load.

1.2. All excess power that is not needed by the load is then exported to the Grid.

1.3. If the Grid fails, then the Grid Tie Inverter will turn off.  When the Grid comes back on line. The Grid Tie Inverter will again supply power to the load and any excess power is exported to the Grid again.

1.4. If the Solar Panel is producing less power and the GTI cannot deliver all the power needed by the load, then power will be supplemented by the Grid.

1.5. Power Meters (Except smart meter) are not aware of the direction of Power flow. The user then pays for the power exported and delivered by the Grid

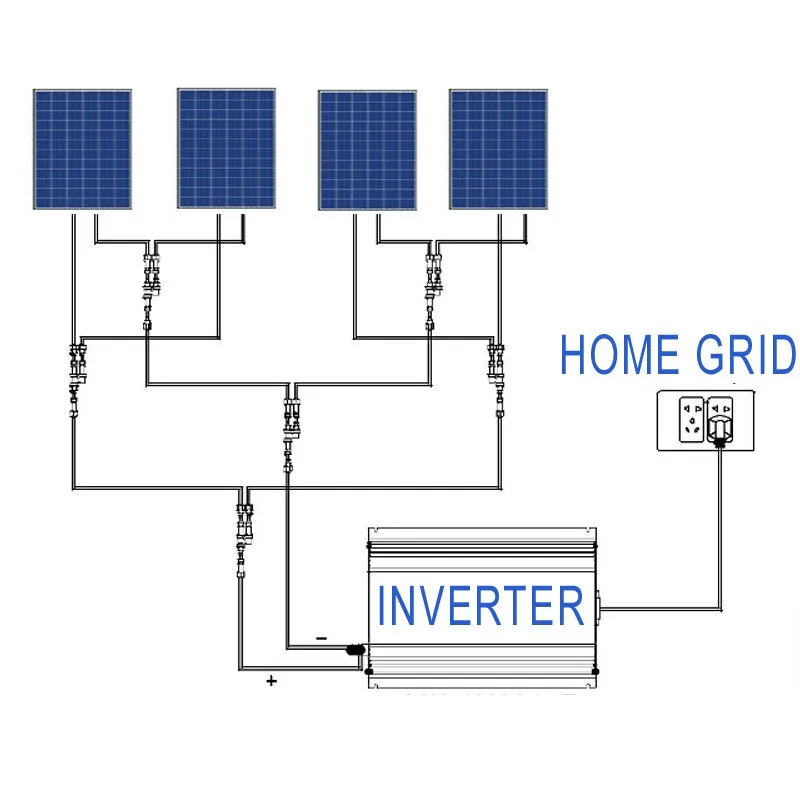

standard grid tie connection



connectionconnection2

If you do not want to sell electric power , you will need to buy a limiter.

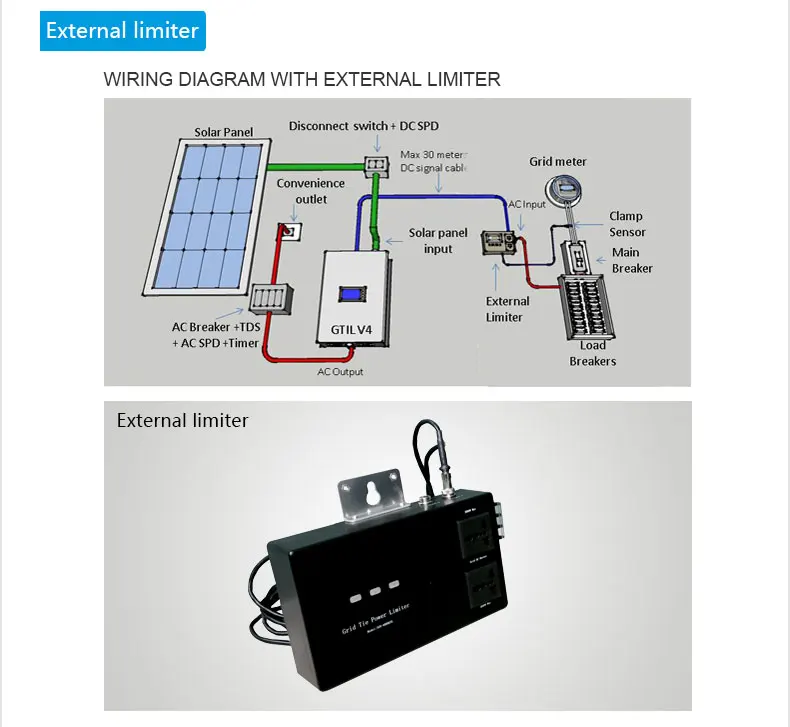

    On-Grid System Using Grid Tie Inverter With Limiter (GTIL)

2.1 The Grid Tie Inverter with Limiter delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.

2.2 The heart of the Grid Tie Inverter with Limiter is the Limiter Module (LM). The LM continuously sampled the power needed by the load through the current sensor connected after the Main Circuit Breaker. The LM then will process the signal. It then sends signal to Grid Tie Inverter how much power to deliver to the load in real time.

2.3 The user, after installing and connecting the GTIL correctly, need not do anything and the unit will do its work automatically



6 SUN-1000GTIL2-LCD

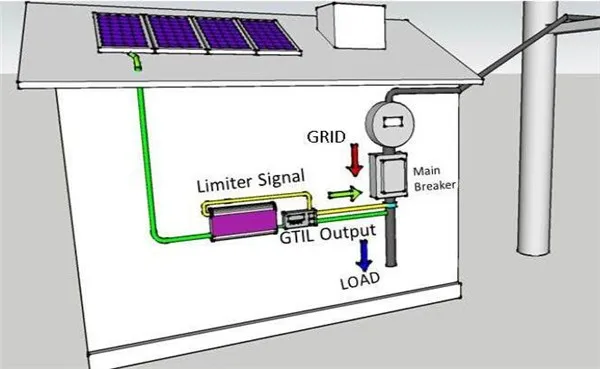

limiter connection





Project



project 1

project 10



project 19project 5





packing list

Inverter---1pcs;

Power Cable---1pcs



project 11

Minimum order more than 30pcs, then you can choose three colors

5





REMARK:

Buyers should be in charge of import tax fee, So pls don\'t forget to tell us the value should be written in invoice.
