New laser range finder high precision electronic ruler infrared measuring instrument measuring 40 meters

New laser range finder high precision electronic ruler infrared measuring instrument measuring 40 meters
  • Продавецrennstall.info
  • Список ценUS $29.00piece
  • Продажная ценаUS $29.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (577)

Oписание продукта

GM2200 Industrial Non-Contact Digital Infrared Thermometer  RS-232 with computer software analysis

Features

  • Memorystorage function (up to 100 data)
  • Wide  Temperature range with200 ~ 2200°C/392  ~ 3992°F
  • With D:S = 50:1, maximum distance from the target object
  • Highly  accurate and reliable
  • Adjustable Emissivity(Preset at 0.95)
  • Spectral  Response from 900~1700nm
  • Large clear LCD display  with Backlight
  • 3   levels Battery Life Indication
  • Auto  Power Off
  • Data Store/RecallFunction
  • Data HoldFunction
  • Access surface temperature in 1 second
  • Selectable between°C and °F
  • Maximum, Minimum,Average andDifference temperature functions
  • Adjustable High/LowTemperatureAlarm
  • Fast response time (0.5 seconds)
  • Measure hazardous or inaccessible objects (high-voltage parts)
  • Laser  Target Pointer selectio

Specifications

  • Measuring Range:200 ~ 2200°C / 392 ~ 3992°F
  • Accuracy
    • 200~ 2200°C (392~3992°F) : ±2°C  or ± 2%whichever is greater
  • Distance to Spot Size / DS Ratio: 50:1
  • Resolution: 0.1 °C/°F
  • Repeatability: 1% of reading or 1°C
  • Response Time: 500mSec, 95% response
  • Spectral Response: 900~1700nm
  • Emissivity: User Adjustable and Preset at 0.95
  • Laser Power: < 1 mW
  • Operating Environment
    • Temperature:  0~40°C (32~104°F)
    • Humidity: 10~95% R.H. non-condensing at up to 30°C (86°F)
  • Storage Temperature: -20~60°C (-4~140°F)
  • Low battery indication (3 levels)
  • Power:  1 x 9V Battery (included)
  • Typical Battery Life (Alkaline): 12 hours (Laser), 22 hours (non-Laser)
  • Item  Size: approx. 141 x 60 x 200mm
  • Item Weight: approx. 270

Professional Digital Infrared Thermometer is a reliable device used for measuring temperature of the object\'s surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. Just aim theLaser Point, press the button, and read the temperature in less than a second. It makes aiming even more precise.

It hasUltra High Distance to Spot Ratio (80:1) and much wider Temperature Range from200 to 2200°C (392 ~ 3992°F). The thermometer also featured with BacklightLCD, High Accuracy,FastResponding Time (0.5 seconds), UserAdjustableEmissivity (Preset  at 0.95) and Spectral Response from900 to 1700 nm.

Itis consist of Optics, Temperature Sensor signal amplifier, Processing circuit and LCD display. The device\'s onics translate the information into a temperature reading which is displayed on the LCD.

In addition,°C and °Fcan be easily switch. It also has100 memories data storage,Maximum,Minimum, AverageandDifferencetemperature functions, AdjustableHighandLowTemperature Alarmand battery life indication.

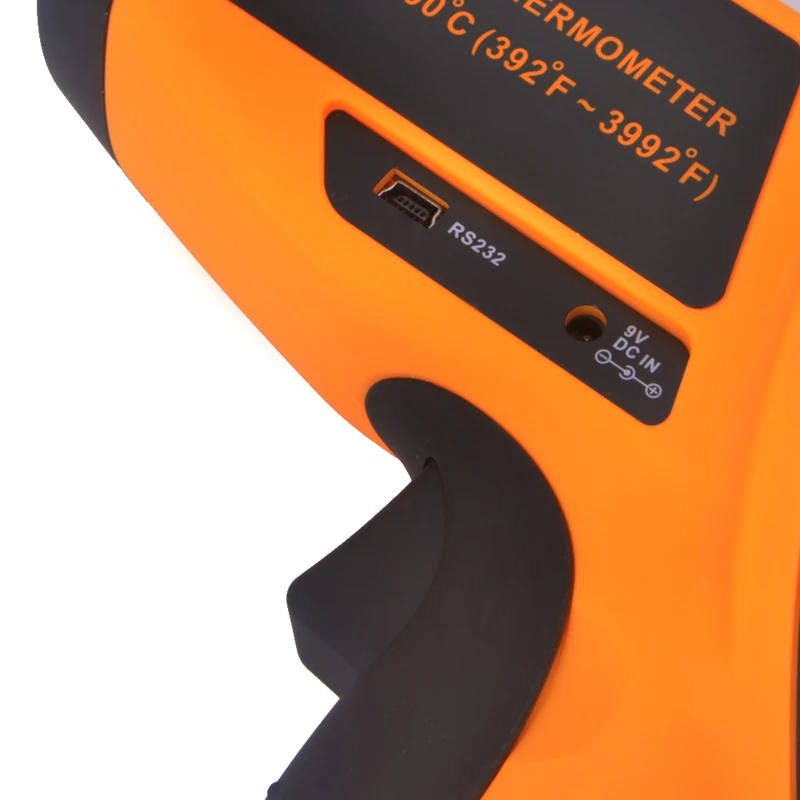

RS-232 conection, on line measurement with computer. With software analysis, also have 100 data export.

Applications

  • Heat ventilation air-conditioning and refrigeration
  • Automotive industry
  • Food preparation
  • Horticulture
  • Construction, mechanics, and hot spots
  • Electrical & power voltage/current inspection field
  • Water treatment and water quality inspection
  • Environmental monitoring
  • Marine and weather
  • Gas industry
  • Food processing industry
