vas5054a uds oki full chip vag diagnostic for audi for vw odis 4.3.3 el.sa 6.0 et.k.a 6.0 installed well in laptop e6420 i5 4g

vas5054a uds oki full chip vag diagnostic for audi for vw odis 4.3.3 el.sa 6.0 et.k.a 6.0 installed well in laptop e6420 i5 4g
  • Продавецrennstall.info
  • Список ценUS $442.00piece
  • Продажная ценаUS $442.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (202)

Oписание продукта

 VAS5054A Diagnostic Tool Vas 5054a ODIS V4. Bluetooth Original Full OKI Chip 4.13 Support for Audi for Seat for Skoda for VW

Top 6 Reasons To Get VAS5054A:

1. With OKI Chip
2. Support UDS Protocol
3. Multi-languages:
English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/
Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
4. Supported Car Models: VW, AUDI, SKODA, SEAT Bentley and Lamborghini
5. Bluetooth Version(  Bluetooth Connection Password: 082145725)
6. Update By CD

Note:
1. VAS 5054A hardware support online coding, but our software does not support. Need get software from VW dealer for online coding function.
2. If you need the software for Lamborghini, Bentley, please leave us information when order

ODIS V4.3 Release:

Contains software bugfixes
VCI exchange not documented in diagnostic protocol
Internal defects

VAS 5054A Software Download:



VAS 5054A ODIS V4.3 Computer Windows System Requirements:

Windows System Language: American English
Win 7 Professional version
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS 5054A

VAS 5054A Descriptions:

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.

VAS 5054A Specification:

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.



Access Via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.

Access Via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

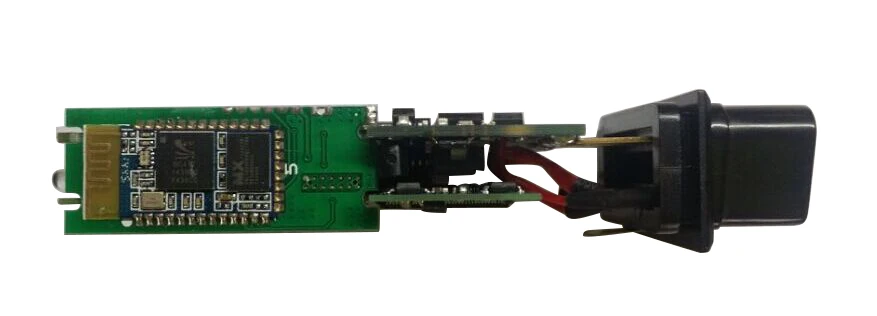

VAS 5054A PCB Board Display:





HTB1XbgxRpXXXXc.apXXq6xXFXXXrHTB1vpsDRpXXXXXVapXXq6xXFXXXf







VAS 5054A Package List:

 1pc x VAS 5054A Main Unit

1pc x USB Cable
4pcs x CD Software
1pc x Carry Case
