Oписание продукта

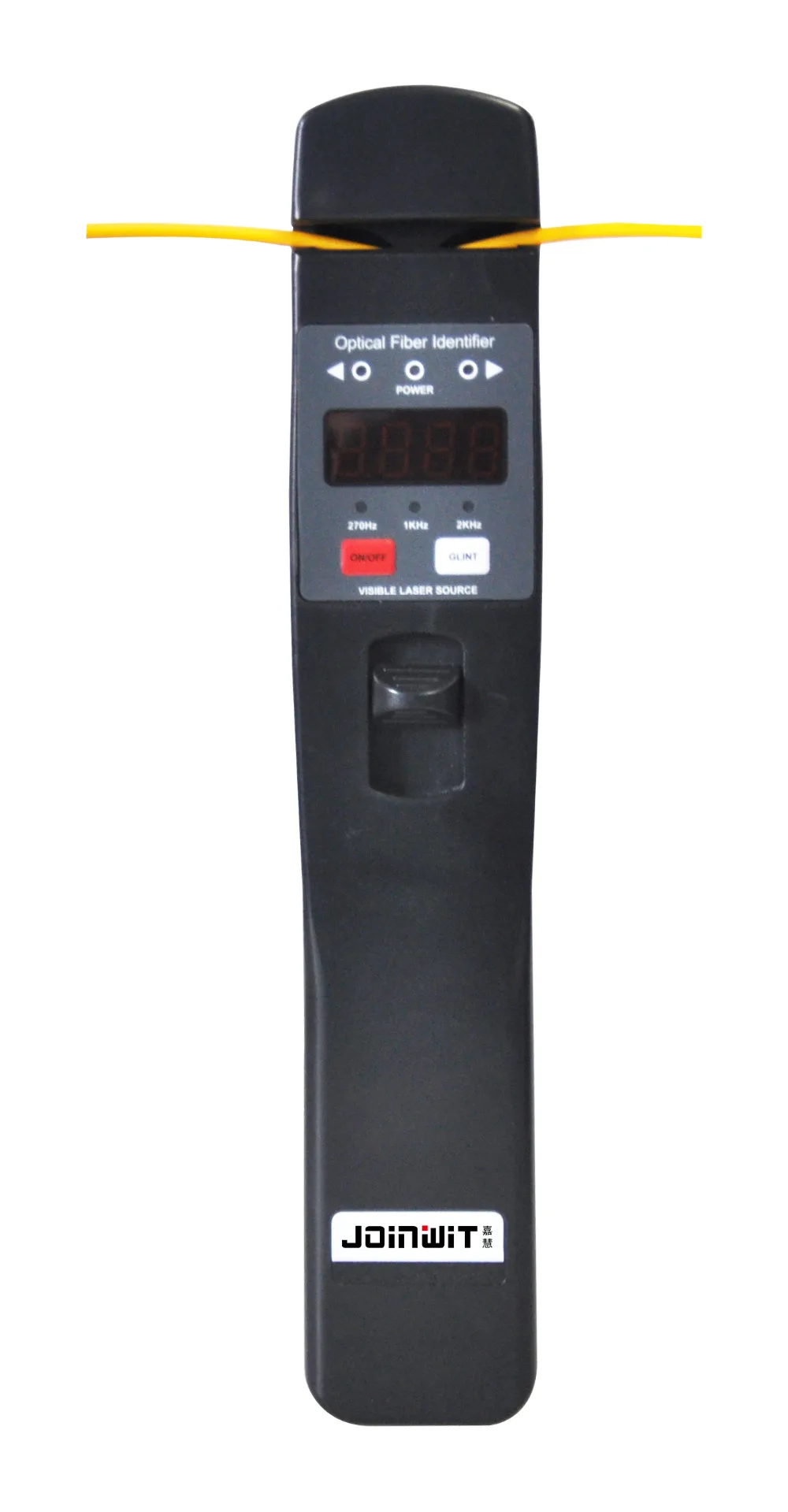

Fiber Optic Identifier Joinwit JW3306D 250um/900um/2.5mm/3mm Live Fiber Identifier Built In 10mW VFL Optic Visual Fault Locator


Description:

JW3306D Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function.

Using the macro bending technology on line for nondestructive testing, JW3306D can measure the signal direction and power and avoid misoperation resulting in interrupted lines.

Features:

* Indicate the signal directions and power in fiber
* Indicate the signal presence or absence(Live or dark fiber)
* Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
* Displays the relative core power
* Don\'t need to replace adaptor
* Lower power indication
* Build in VFL function

Specification:

Wave respond750nm-1700nm

Pass through insertion loss:

1.  250umOptical fiber

2.  900umOptical fiber

3.  3mmOptical fiber

1. 1.0dB

2. 1.0dB

3. 2.0dB

Application of optical fiber250um/900um/2.5mm/3mm Optical fiber
Identified Signal Type 270HZ/1KHZ/2KHZ
Identification of modulated signalsYes
Power MeasurementYes
DisplayLED segment
ToneYes
Low power monitoringYes
Detector type1mm InGaAs

Minimum detection power

Test conditions:

   250umOptical fiber

   900umOptical fiber

   3mmOptical fiber

Test conditions:



250umOptical fiber

900umOptical fiber

3mmOptical fiber

1550

-35dBm

-35dBm

-30dBm

1310



-30dBm

-30dBm

-25dBm

Specifications of VFL
Wavelength    650nm±10nm
Output Power10 mW
Fiber PortFC/PC
Power supply2*AA 1.5V Alkaline Battery
Operation Temperature-10 °C  to  +50 °C
Storage Temperature-20 °C  to  +70 °C
Dimensions230*43*48mm
Weight200g

Standard Packages:

MODELINCLUDES
JW3306DJW3306D Optical Fiber Identifier, Alkaline battery(not included), User Manual, and Soft Carrying case

W3306D_ Optical_Fiber_ Identifier(4)W3306D_ Optical_Fiber_ Identifier(5)W3306D_ Optical_Fiber_ Identifier(16)W3306D_ Optical_Fiber_ Identifier(17)JW3306D_Fiber_ Optic_Identifier2
