Latest ODIS 4.0.0 VAS 5054A Bluetooth impot chip VAS5054A OBDII Diagnostic Tool VAS 5054 A Supports UDS Protocols VAS5054

Latest ODIS 4.0.0 VAS 5054A Bluetooth impot chip VAS5054A OBDII Diagnostic Tool VAS 5054 A Supports UDS Protocols VAS5054
  • Продавец
  • Список ценUS $33.69piece
  • Продажная ценаUS $33.69piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (462)

Oписание продукта


Top quality and Best sales On aliexpress! Full tech support and best feedback from many famous Auto forum! Choose us! Choose best quality!



Version 1  is  Original OKI version (most popular version)

software support  ODIS 4.3.3 4.2.3 4.1.3 3.0.3  vas-pc!

Version 2 is OKI version + AMB2000 version


Why buy VAS 5054A  from us:

1. Best quality.

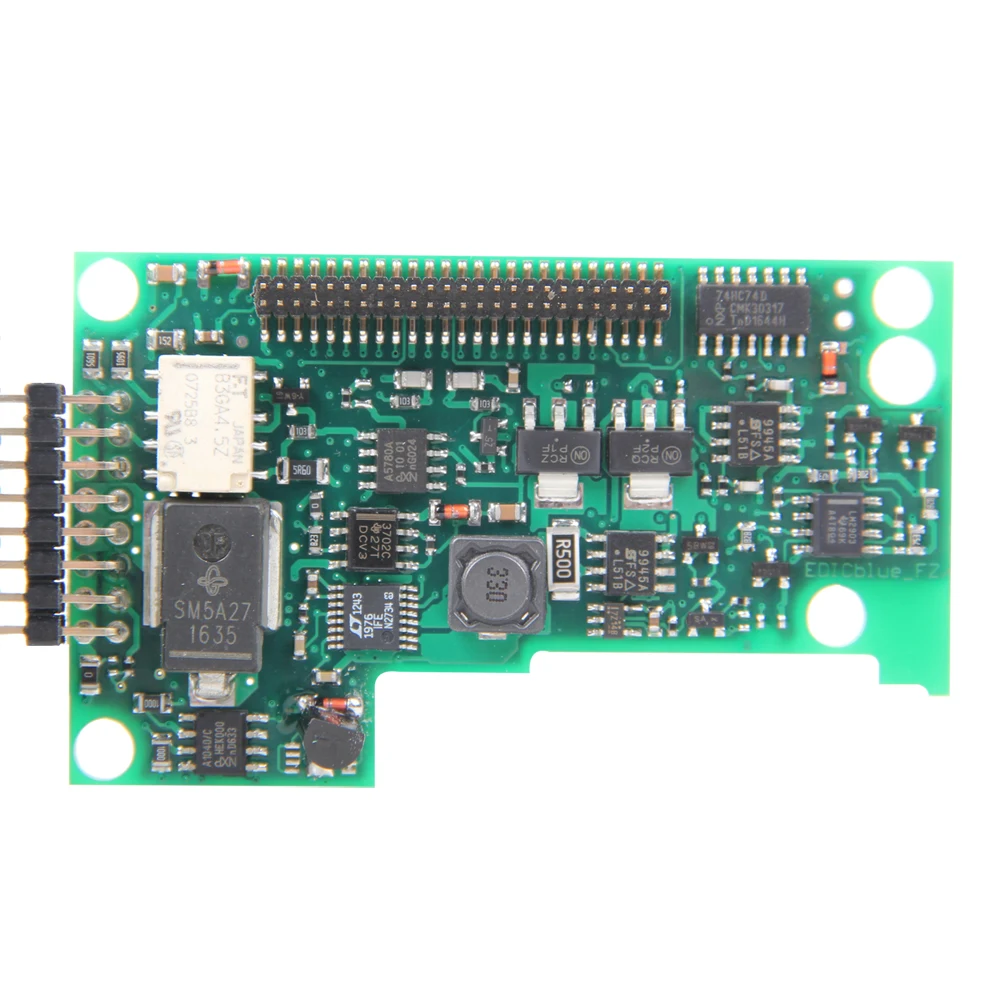

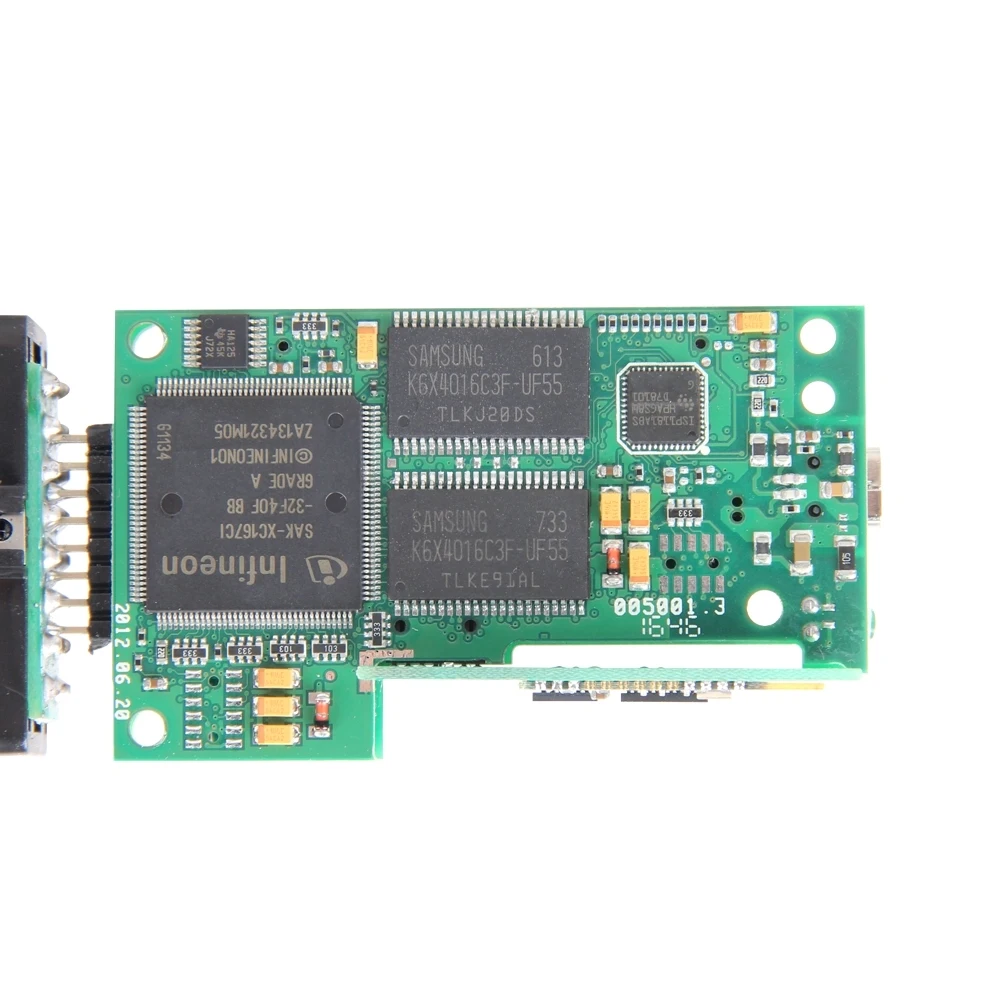

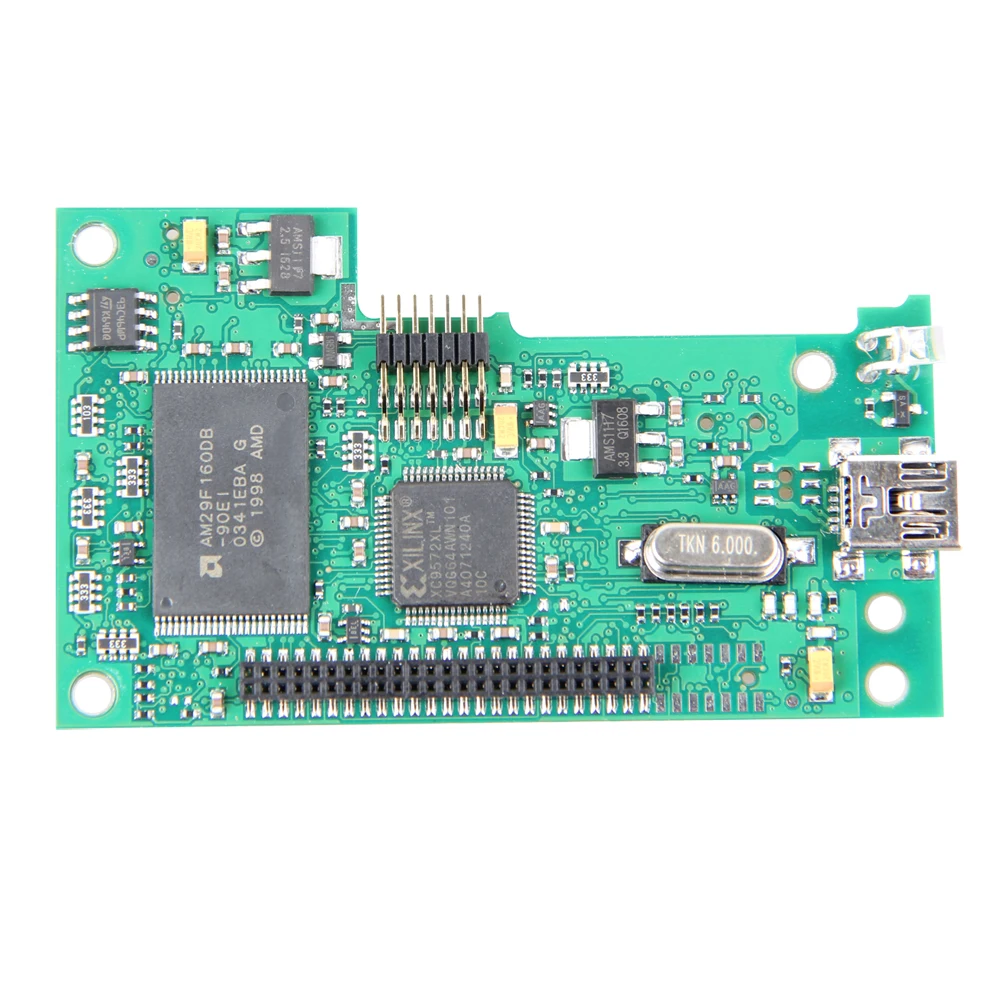

2. Full version chips A5780A , OKI chip, TJA-chip! It supports UDS protocol and PWM
3. Full support for all VAG vehicles by 2014! Among others, Golf 7 and new A3!
4. Most functions works fine like original.
5. Affordable price.
6. Works on newest version ODIS 4.0.0. We provide 3.0.3 disks and 4.0.0 links.
7. Keep updating ODIS
8. Multi-Language: (you can choose any language you need freely

Note: For online coding, you need to have an account sold by VW dealers!

We provide ODIS v3.0.3, v4.1.3  v4.3.3 download links

If you find any damaged file in the disk, please contact us to get download links.
If you are not familiar with the installation, you may check the video in the disk.
ODIS needs to be installed in a fully clean computer or laptop (No VAS software is installed before!!)
If your computer or laptop has installed any VAS software before, please delete all related files before installing new ODIS!!


Product Description:


VAS 5054A ODIS Computer Windows System Requirements:
Windows XP(xp2/xp3), Windows 7(32/64bit), Windows 8
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS 5054A
VAS5054A Description:
The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
VAS5054 Specification:
The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access via Bluetooth:
After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB:
You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.
The Following Vehicle Bus Systems are Supported:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)



Version 1



Version 2
Package List:
1× VAS 5054A main unit
1× CD(For VW AUDI, for SKODA SEAT software)
