Oписание продукта

LAN bridge on existing e1 based networking 2e1 to 4 port ethernet protocol converter details:

Basic information:

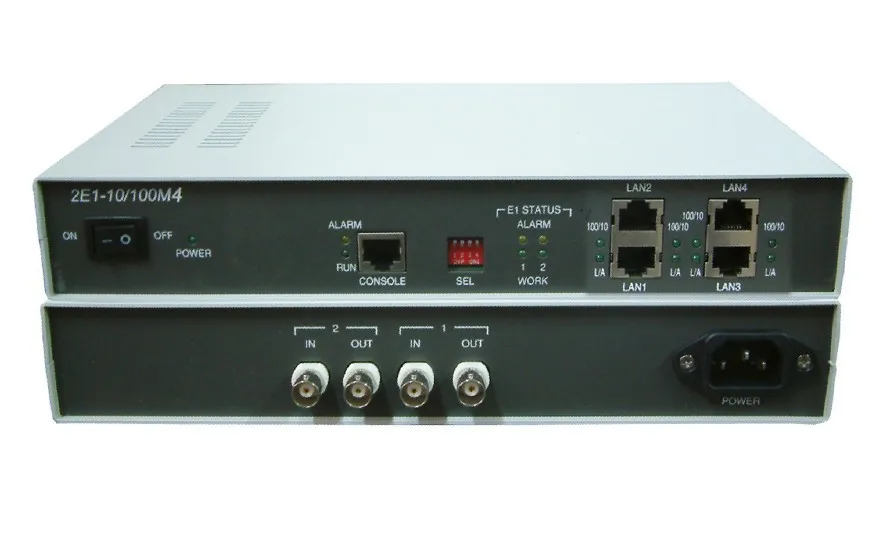

HT-009 is Ethernet over 2E1 converter offers a channelized E1 and 10/100Base-T interface conversion. The equipment provides the user with 4×Ethernet over 2×E1 conversion enabling the user to transport Ethernet data over up to 2 E1 links

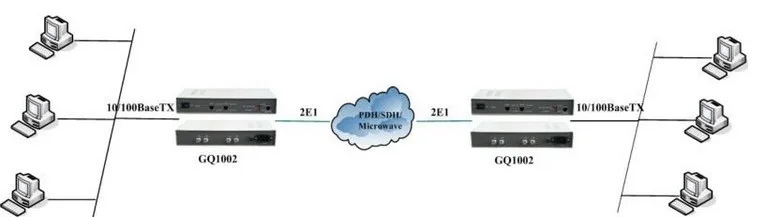

HT-009 is an Ethernet extension device utilizing TDM telecom infrastructure( the telecom networks of E1s,or of PDH,SDH and E1/E3/SDH microwave etc. Carrying E1s). It converts the Ethernet data into E1 frame format for transmission over the existing TDM(E1)links and then re-converts the E1 back into Ethernet data the far-end terminal,to bridge two Ethernet LANs over the existing E1-based telecom network. The device can effectively utilize the redundant bandwidth of telecom operators\' existing TDM network to transport Ethernet data with low investment



 1.Provides 2 E1 interfaces and 4 10/100Mbps Ethernet interfaces

 2.The maximum transmission rate of Ethernet data over E1 links is 7.68Mbit/s

 3.E1 supports two working modes of transparent transmission: framed(CCS/PCM31) and unframed

 4.Transparently transmits ultra-long frames stipulated in IEEE802.1 Q, and supports Ethernet switches with VLAN function

 5.Ethernet interface supports 10/100Mbps half/full-duplex, automatic negotiation

 6.Available with MAC address list filtration, learning and updating functions

 7.Available with auto-resetting function. When network port stops receiving or sending data about 8seconds, the auto-resetting circuit will be able to start automatically, to reduce and maintain workload for the system

 8.Supports two working modes : internal clock and external clock

 9.Supports RLOOP(E1 port external loop-back)

10.Built-in E1 circuit testing function

11.Plug and Play

12.Optional powers 220V AC


E1 Interface

Impendence : 75Ohm/120Ohm

Line Rate: E1(2.048Mbps)

Line Code: HDB3, compliance with ITU-T G.703

Electric features of digital interface compliant with ITU-T G.703 recommendations

Jitter transfer performance: compliant with ITU-T G.823 recommendations

Physical Connetors: RJ 45 or BNC coaxial

Ethernet Interface

Number of Ports: 4

Speed: 10/100Mbps full/half duplex auto-negotiation

Standards Compliance: compliance with IEEE-802.3u

Physical Connetors: RJ45


Operating Temperature: 0 to 70°C (32 to 158F) 5 to 95% RH

Storage Temperature: -40 to 85°C (40 to 185F) 95% RH

Power Requirements

AC power: AC220V (185~265V)

Power Consumption: <5 Walt

Mechanical Specifications

Dimensions: 220 mm(Weight)×177 (height)×35 (depth)
