Motorcycle modification electric motorcycle four piston brake calipers pump RPM 220 for WISP RSZ Turtle King small radiation

Motorcycle modification electric motorcycle four piston brake calipers pump RPM 220 for WISP RSZ Turtle King small radiation
  • Продавецrennstall.info
  • Список ценUS $41.94piece
  • Продажная ценаUS $41.94piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (695)

Oписание продукта

12500 RPM Motorcycle Speedometer LCD MPH Digital Odometer 7 Colors Backlight Motorbike Speedometer Tachometer

Features:
1.7 Colors Backlight
2.LCD screen is Clear display, no phantom and sun-proof.
3.Switch ODO (cumulative number of kilometers) and TRIP (km total) through short press MODE key.
4.Tire size adjustment:Short press MODO switch to ODO mode. Under the ODO mode, press ADJ key first, and then press the MODO button immediately, two keys hold together to keep 3 seconds, then release buttons, long press MODO immediately and Enter the tire size adjustment state.
5.Clock adjustment:Press the mode key switch to ODO mode, long press the mode key on the ODO mode and enter the clock adjustment mode, short press MODE key to realize the switch of adjust the hours and minutes. After entering the clock mode, short press ADJ can realize plus one hour or minute adjustment and long press ADJ can achieve rapid adjustment.
6.All the button operation time is 5 seconds, more than 5 seconds automatically jump out of the current mode
7.Oil indicator light for each of the 1000KM lights up. Long press ADJ key in the ODO mode, the oil indicator will be extinguished.

Line function:
 -Red line : battery + (Ingnition input line , always have electricity)
-Brown / Black: Ingination switch battery +(The battery + control by ingination )
-Green: negative
-Yellow / White: oil level
 -Yellow / green:oil level (fit for 2 line oil float motorcycle   connect one ,anohter one not connect)
  -Light Blue: right turn indicator
 -Orange: left turn indicator
-Blue: beam indicator
-Red /White : engine speed engine trigger coil (also called pulse coil).

Specifications:
-Power voltage: 12V
-RPM: 12500

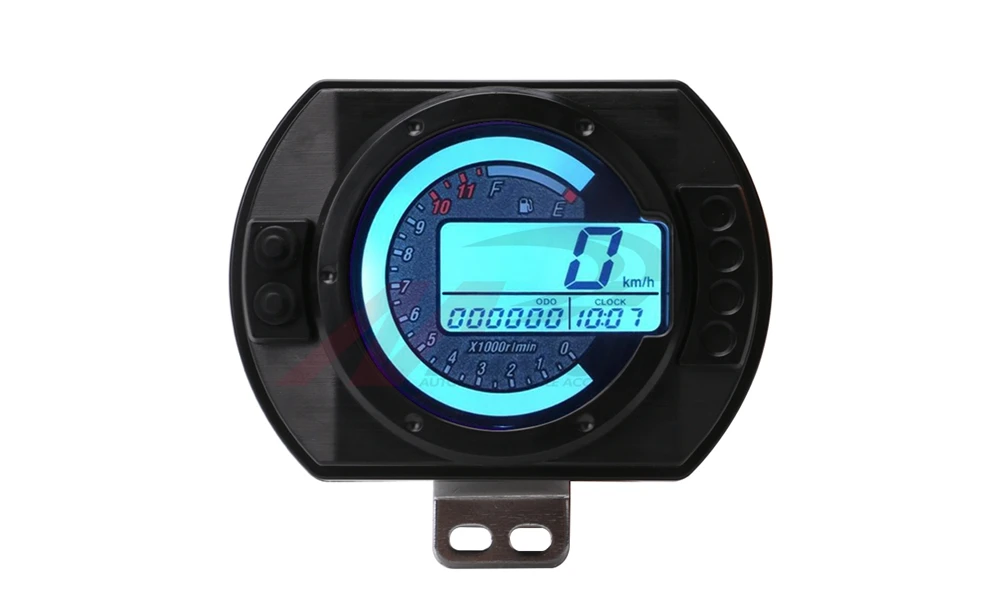

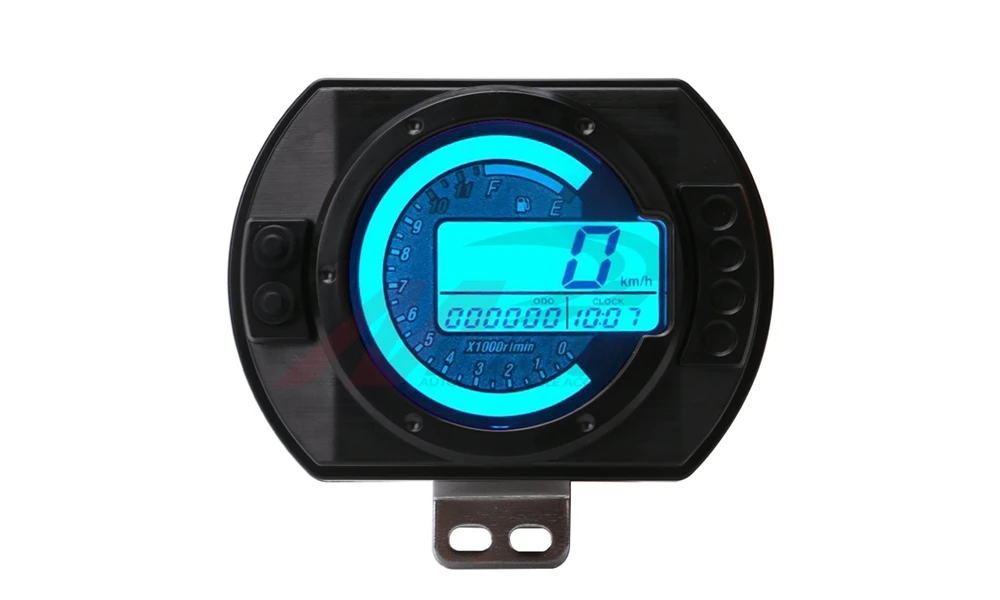

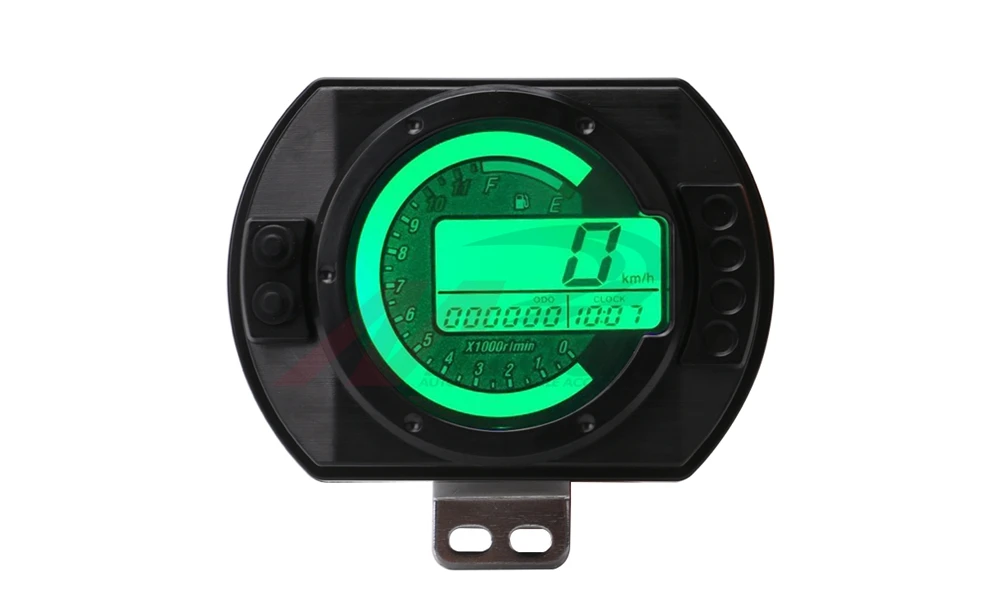

-Backlight: 7 Colors (As shown in the picture)
-Quantity: 1 pc

Package Included:
1 x LCD odometer
